We have available with us a technically advanced range of Plano Millers, Double Column Plano Milling Machines, Plano Milling Machines with side boring head, Plano Miller Machines with Side boring Head, Universal milling head, cms Crossing Plano Milling Machines, Loco Bogi Plano Milling Machines, Railway Plano Milling machines which is manufactured using high grade raw material. Our range is fabricated in accordance with the specifications of our clients and is appreciated across the globe for outstanding performance and long serviceability.

FEATURES:

  • Robust and rigid construction throughout, ensuring vibration free working.
  • Special Alloy casting to ensure maximum strength and long life.
  • The Cross Rail is Box section heavily ribbed with large surface. It is Suitable for Both Hand and Mechanical Drive.
  • All working parts properly seasoned and machine finished on imported machines, followed by proper scraping, to obtain more precision working and long life.
  • Lubrication System so designed that lubricant reaches to every individual part.
  • Special Alloy Steel is Used For Milling Head, Cross Feed and Table Feed Gear Box.
  • Gear Box placed in such a position as to enhance the appearance of the whole machine.
  • All gears cut on imported Gear Shaper and hobbing machine, hence smooth and silent run.
  • The Machine is arranged for Direct Individual (Planner and Plano Miller Mode)as well as Two Belt Drive.
  • All parts are standardized, hence replaceable.

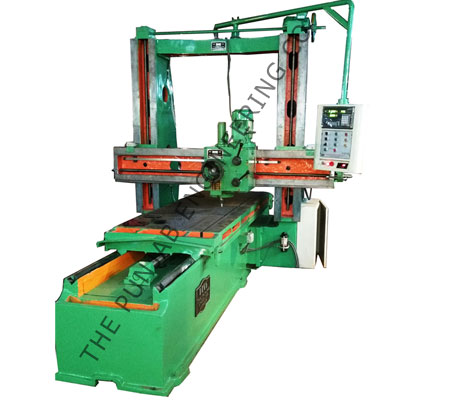

PLANO MILLER / PLANO MILLING MACHINES

SPECIFICATION OF HEAVY DUTY PLANO MILLER MACHINE
MODEL 1218/1225/1235 1625/1635/1645 2035/2045/2060
Table Size (mm) 800 x 2100/2800/3800 950 x 2800/3800/4800 1300 x 3800/4800/6300
Table Stroke (mm) 1800/2500/3500 2500/3500/4500 3500/4500/6000
No. of T - Slots 5 6 8
Width of T - Slots (mm) 20 20 20
Distance Between T - Slots (mm) 145 150 150
Table Feed Stepless (mm/min) 40 ~ 600 40 ~ 600 40 ~ 600
Table Rapid Stepless (mm/min) 3000 3000 3000
Table Feed Motor (hp) 2/3/3 HP 3/5/5 HP 5/7.5/7.5 HP
Width Between Column (mm) 1200 1600 2000
Maximum Height under Spindle (mm) 1000 1000 1000
Vertical Traverse of Cross Rail (mm) 1030 1030 1030
Vertical Feed of Cross Rail (mm/min) 300 300 300
Cross Rail Feed Motor (hp) 3 3 3
Horizontal Traverse of One Saddle (mm) 1700 2100 2500
Saddle Cross Feed Motor (hp) 3 3 3
Saddle Cross Feed Stepless (mm/min) 40 ~ 600 40 ~ 600 40 ~ 600
Saddle Cross Rapid Stepless (mm/min) 2200 2200 2200
Milling Head
RPM 80 ~ 500 80 ~ 500 80 ~ 500
Speeds Variable ( 4 Step) Variable ( 4 Step) Variable ( 4 Step)
Motor (hp) 5 5 5
Spindle Nose ISO-50 ISO-50 ISO-50
Quill Traverse (manual) (mm) 100 100 100
Maximum Cutter Dia (mm) 125 / 160 125 / 160 125 / 160
Swivel (manual) ±45° ±45° ±45°
Standard ( Standard machine comes with one vertical head)
Optional Up to four(Two on Cross Slide) (Two , One each on Both Columns)
Overall Size (L x B x H) 2700/3750/5250 x 3035 x 2900 3750/5250/6750 x 3435 x 2900 5250/6750/9000 x 3835 x 2900
Optional Milling Head
MODEL PMH - 40 PMH - 50
RPM 120 - 500 100 ~ 400
Speeds 4 Variable (4 Steps)
Motor (HP) 5 10/15/20 HP
Spindle Nose ISO-40 ISO-50
Quill Traverse - manual (mm) 100 125
Maximun Cutter Dia (mm) 80 200/250/300
Swivel (manual) ±45° ±45°
Extra heavy duty milling head up to 30 hp on request.
Due to continuous improvement the design and dimensions are subject to change without prior notice
