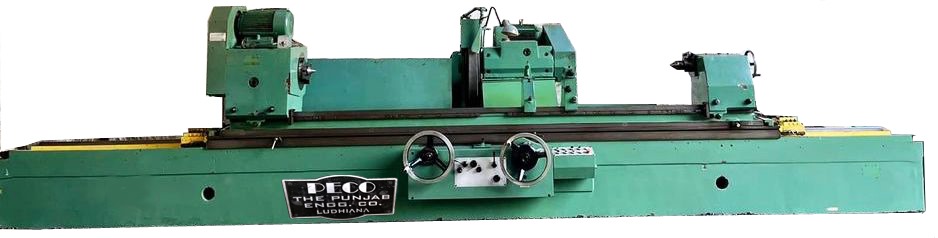

PECO Roll Grinding Machine has high rigidity, accuracy & reliability. These roll grinders are used for the industrial grinding utilities for Metallic & non-metallic Rolls of steel Rolling mills, Coil Mills, Foils mills, Rubber roll for microns accuracy.
1. Bed made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption through stability and high rigidity of machine.
2. Precision V & flat guideways for table with continuous automatic lubrication.
3. Automatic lubrication system is provided in Wheel Head Assembly for longer life of the Phosphorous Bronze bushes and Spindle.
4. Bearings provided in Wheel Head, Tail Stock and Work Head of Reputed Company.
| Specifications (Sizes) | (48") | (60") | (72") | (84") | (90") | (104") | (120") | (150") |
| Max. Distance between centres mm. | 1200 | 1500 | 1800 | 2100 | 2250 | 2600 | 3000 | 3750 |
| Max. Distance between chunks mm. | 1100 | 1400 | 1700 | 2000 | 2150 | 2500 | 2900 | 3600 |
| Max. weight kg. | 60 | 80 | 100 | 125 | 150 | 200 | 300 | 500 |
| Swing over table mm. | 400 | 500 | 500 | 650 | 650 | 650 | 650 | 650 |
| Work head spindle speeds RPM | 27-41-61 | 27-41-61 | 27-41-61 | 27-41-61 | 27-41-61 | 18-27-41 | 18-27-41 | 18-27-41 |
| Grinding wheel speed RPM | 950 | 950 | 950 | 750 | 750 | 750 | 725 | 725 |
